An E7 error on an electric scooter indicates a motor Hall sensor communication fault, preventing the electronic speed controller (ESC) from detecting the motor’s rotor position. When this occurs, the scooter typically refuses to accelerate, stutters violently upon throttle input, or displays a locked wheel sensation caused by uncoordinated phase firing. Resolving an E7 code requires inspecting the main motor cable harness, checking for bent or corroded pins in quick-disconnect plugs, and testing Hall sensor signal voltages with a digital multimeter.
Quick Answer
An E7 error code signals a Hall effect sensor failure or broken signal line between the brushless DC (BLDC) motor and the motor controller. To fix it, power down the scooter, disconnect the battery to drain residual power, inspect the axle exit cable for pinched wires, firmly reseat the 9-pin/10-pin motor connector, and test the 5V signal lines with a multimeter before replacing the internal Hall sensor board or controller.
Key Takeaways
- Core Cause: The controller cannot read rotor position data due to damaged 5V Hall sensor wires, loose Julet plugs, blown Hall ICs, or water ingress.
- Primary Symptoms: Throttle unresponsive, heavy motor cogging/vibration, wheel resistance, or one dormant motor on dual-drive models.
- Most Common Physical Fault: Sheared, crushed, or pinched wiring harnesses where the cable exits the wheel axle notch.
- Testing Method: Measure voltage between ground (black) and signal leads (yellow, green, blue); voltage must toggle between 0V and 5V as the wheel rotates.
At a Glance
| Time Required | 20–45 minutes |
| Difficulty | Intermediate (Basic electrical & hand tools) |
| Tools Needed | Digital multimeter, hex key set, electrical contact cleaner, wire strippers / soldering iron (if repairing leads) |
| Cost | $0 (loose plug/cleaning) to $35–$120 (replacement motor or controller) |
What the E7 Error Means on an Electric Scooter
Electric scooters use brushless direct current (BLDC) hub motors that rely on three internal Hall effect sensors. These tiny electronic switches detect the exact magnetic position of the rotor relative to the stator electromagnets. This real-time positioning data is sent directly to the motor controller so it can energize the three heavy phase wires (U, V, W / Blue, Green, Yellow) in perfect rotational timing.
When an E7 error is triggered, this communication loop breaks. The controller stops receiving predictable timing pulses from one or more Hall sensors. As a fail-safe measure to prevent burning out the motor controller’s MOSFET switches, the system limits or completely halts power output. On dual-motor scooters (such as models equipped with QS-S4, TF-100, or EY3 throttle displays), one motor may continue to operate normally while the faulted hub shuts down completely.
“Without clean Hall sensor feedback, a sensor-dependent BLDC controller cannot calculate phase timing, resulting in severe motor shuddering, torque loss, or total throttle cutoff.”
Common Causes of the E7 Scooter Error
While the E7 code directly flags a sensor signal interruption, the root failure can occur anywhere along the electrical pathway from the motor core to the controller PCB:
- Pinched or Severed Axle Harness: The motor wiring exits directly through a hollow axle slot. Heavy curb strikes, aggressive folding, or loose axle nuts can pinch, strip, or slice the delicate 5V Hall signal leads.
- Loose or Corroded Quick-Disconnect Plugs: Many modern scooters use 9-pin or 10-pin waterproof connectors (such as Julet or Higo cables) near the swingarm. Road vibration can back these plugs out, or water intrusion can corrode the fine signal pins.
- Blown Hall Effect Sensor ICs: Riding under extreme load, steep incline overheating, or water intrusion inside the hub shell can burn out the Hall sensor integrated circuits (commonly 41F or SS41 series).
- Damaged Controller Hall Processing Circuit: Voltage spikes or blown MOSFETs inside the electronic speed controller can destroy the 5V pull-up resistors or internal logic processing circuit.
- Throttle/Brake Signal Conflicts: On certain generic throttle-display units (e.g., TF-100/LH-100 clones), line voltage drops or shorted hall sensors inside the throttle or brake cut-off sensor can trigger an E7 fault code.
Brand-Specific Meanings for the E7 Code
While E7 is most widely recognized as a motor Hall sensor fault across mainstream scooter platforms, code definitions can vary based on controller firmware:
| Display / Brand Ecosystem | Primary E7 Meaning | Primary Component to Inspect |
|---|---|---|
| Kugoo / Kirin (Kugoo M4, S1, G-Booster) | Motor Hall Sensor Communication Fault | Main motor harness, 9-pin plug, motor Hall PCB |
| Kaabo / Zero / Apollo (QS-S4 & TF-100 Displays) | Motor Hall Sensor Signal Failure | Axle wire notch, swingarm connector, controller port |
| Hiboy / Generic Commuter Models | Motor Phase or Sensor Error | Under-deck controller harness, brake cut-off lever |
| Segway-Ninebot / Xiaomi (Blink/Beep Code 17) | Braking / Lever Sensor Circuit Fault (Specific models) | Hall sensor inside the brake lever assembly |
How to Diagnose and Test an E7 Scooter Error
Diagnosing an E7 code requires isolating physical cable damage before testing electrical circuits with a multimeter.
Warning: Always power off the scooter and unplug the main lithium-ion battery pack before accessing the deck interior or controller wiring. Shorting high-current battery terminals or motor phase lines can cause severe electrical arcing and permanent controller damage.
Products Worth Considering
Sensor Integration Used for detecting rotor position in brushless hub motors, supporting smooth motor control.
Packing list? 2pcs Hall Sensor
Stable Performance: Professional manufacturing, craftsmanship and high accuracy help to provide stable performance to meet your various needs.
Step 1: Inspect the Axle Exit Cable and Connectors
Examine the black rubberized cable where it exits the center of the wheel hub axle. Look closely for:
- Spiral twisting or crushed outer jacketing caused by loose axle nuts.
- Deep gouges or sharp cuts from scraping against curbs or disc brake rotors.
- Bent pins or dirt inside the quick-disconnect inline barrel connector (often located 4–8 inches from the axle).
Pro Tip: Look for arrows stamped on both halves of waterproof round connectors. If these alignment arrows are misaligned even slightly, the fine Hall sensor pins will fail to make contact or become bent inside the housing.
Step 2: Test Hall Sensors with a Multimeter (0V to 5V Signal Test)
If wiring appears intact, perform a live signal test to identify whether the fault originates in the motor Hall board or the controller:
- Open the scooter deck to expose the motor wiring harness leading to the controller.
- Locate the 5-wire or 6-wire small Hall connector (typically containing Red (+5V), Black (Ground), and Yellow, Green, Blue (Signal lines)).
- Keep the connector plugged into the controller, turn the scooter power ON, and set your multimeter to DC Voltage (20V range).
- Insert the black probe into the back of the Black (GND) terminal.
- Probe the Red wire with the red probe to confirm the controller is supplying 4.5V–5.0V DC. If voltage is 0V, the controller’s internal 5V regulator is faulty.
- Probe the Yellow wire while slowly rotating the motor wheel by hand. The voltage must alternate cleanly between 0V and ~5V as the magnets pass the sensor.
- Repeat the test for the Green and Blue signal wires.
If any signal wire remains stuck at 0V or 5V without toggling as the wheel rotates, that specific Hall sensor IC inside the motor has failed and requires replacement.
Step 3: Isolate the Fault on Dual-Motor Scooters
On dual-motor scooters, switch the front and rear motor Hall sensor connectors at the controller ports:
- If the E7 error switches to the opposite drive display/channel, the motor Hall sensor or motor harness is defective.
- If the E7 error stays on the exact same channel despite swapping motor inputs, the electronic speed controller is defective.
Quick Fixes for the E7 Error Code
Work through these targeted repair steps in order of complexity to resolve the E7 error code:
1. Perform a Hard System Power Reset
Capacitors inside the motor controller can store residual logic state errors. Disconnect the main battery lead from the controller, hold down the power button on the handlebar display for 15 seconds to discharge all residual capacitor energy, wait 5 minutes, reconnect the battery firmly, and power the scooter back on.
2. Clean and Reseat All Harness Plugs
Unplug the motor quick-disconnect barrel plug and the main controller harness. Spray both male and female terminals with quick-drying electrical contact cleaner to dissolve oxidation, check for recessed pins, and seat the connectors firmly until fully bottomed out.
| Checkpoint | Diagnostic Verification | Corrective Action |
|---|---|---|
| Motor Axle Cable | Inspect outer sheath for cuts, kinks, or crushing | Solder severed leads, heat-shrink and secure cable |
| 9-Pin Julet Plug | Check alignment notch and examine pin straightness | Straighten bent pins with needle-nose pliers, align arrows |
| Controller 5V Port | Measure reference voltage across Red and Black leads | Replace controller if 5V bus is dead or shorted |
| Brake Sensor Signal | Check if brake lever switch is sticking or shorting | Adjust brake cable tension or replace magnetic reed switch |
When to Replace the Motor or Controller
If physical wiring checks and connector reseating do not eliminate the E7 code, hardware replacement is necessary:
- Replace the Motor Hall Sensor Board (or Entire Hub Motor): If the multimeter test shows one or more signal wires failing to toggle between 0V and 5V during manual wheel rotation, the internal Hall sensor PCB has failed. You can solder new 41F bipolar Hall sensors into the motor stator slots, or replace the entire hub motor assembly if stator coils show signs of heat discoloration or burning.
- Replace the Motor Controller: Replace the ESC if it fails to output the required 5V DC reference voltage to the Hall harness, if swapping channels on a dual-drive scooter proves the fault originates on the PCB, or if the controller casing exhibits burnt smells, swollen capacitors, or heat-darkened MOSFET solder joints.
Products Worth Considering

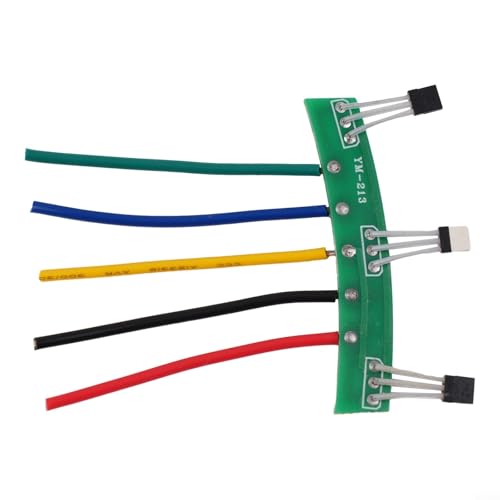

Electric Motor E Bike Hall Element Circuit Board
【Hall Sensor 3147 41F 213 PCB Board Cable for Ebike Electric Scooter】
【PCB Material】Electric scooter hall sensor board is manufactured with high quality PCB materials, durability and stability
How to Prevent E7 Errors
Preventive maintenance protects delicate low-voltage signal wiring from road stress, moisture, and vibration:
| Component | Failure Risk | Preventive Maintenance Action |
|---|---|---|
| Axle Wire Harness | Pinching and friction wear | Wrap with spiral plastic cable guards and ensure torque washers hold axle tight. |
| Connector Plugs | Corrosion and moisture ingress | Apply dielectric grease inside multi-pin plugs and wrap in waterproof silicone tape. |
| Motor Hub Shell | Overheating & coil insulation breakdown | Avoid exceeding rider weight limits on steep hill climbs; let motors cool after long rides. |
| Deck Enclosure | Water pooling on controller PCB | Seal deck perimeter and cable pass-through grommets with neutral-cure RTV silicone. |
Frequently Asked Questions
Can I ride my electric scooter with an active E7 error?
No. When an E7 error is present, the controller cannot coordinate current across the motor phase wires. Attempting to force the throttle will cause severe motor stuttering, aggressive cogging resistance, and can quickly burn out the controller’s internal MOSFET switches.
Can a bad throttle or brake cut-off lever trigger an E7 error?
Yes. On certain scooter models and clone throttle displays (like TF-100 or LH-100 variants), a shorted 5V supply line in the throttle or an active magnetic brake cut-off sensor can pull down the controller’s logic voltage, triggering an E7 code instead of standard E2 (brake) or E8 (throttle) codes.
How much does it cost to fix an E7 motor Hall sensor error?
If the issue is a loose connector or pinched external wire, repairs cost $0 to $15 for solder and heat shrink. If the internal Hall sensor ICs are blown, replacement 41F sensors cost under $10 for DIY repairs, while replacing the entire hub motor or controller typically costs between $45 and $130 depending on the scooter brand.
Can an electric scooter run sensorless without Hall sensors?
Only if the scooter uses a dual-mode or sensorless electronic speed controller. Standard factory e-scooter controllers require Hall sensor feedback for smooth zero-speed startup. Without Hall sensors, standard controllers will stall and display an E7 fault code whenever throttle is applied.
Conclusion
An E7 error code is an actionable diagnostic message pointing directly to a breakdown in the motor Hall sensor communication circuit. Before purchasing replacement hardware, systematically eliminate simple causes: inspect the axle exit notch for crushed wiring, reseat the waterproof multi-pin connector, and perform a live 0V–5V voltage toggle test with a multimeter. Addressing wiring damage early prevents electrical arcing and protects both the hub motor stator and the electronic speed controller from permanent failure.
