Abu Garcia Max SX Review: Is It Worth It

Last Updated on September 10, 2026 by Daniel Globe

Disclosure: As an Amazon Associate, we earn from qualifying purchases. If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.

Choosing a spinning combo gets harder when several sizes share the same product name but offer different rod powers and reel capacities. The Abu Garcia Max SX linked in this review is the 4000-size spinning combo with a 7-foot, medium-heavy, 2-piece rod, giving you a setup aimed at heavier freshwater applications rather than ultralight fishing. Its 14 lb maximum drag, graphite construction, 6+1 bearing system, and braid-ready spool are meaningful strengths, although the larger 4000 reel will feel like more tackle than some finesse anglers need. This review breaks down the verified configuration so you can decide whether its balance of power, portability, and line capacity fits your fishing style.

What Is the Abu Garcia Max SX?

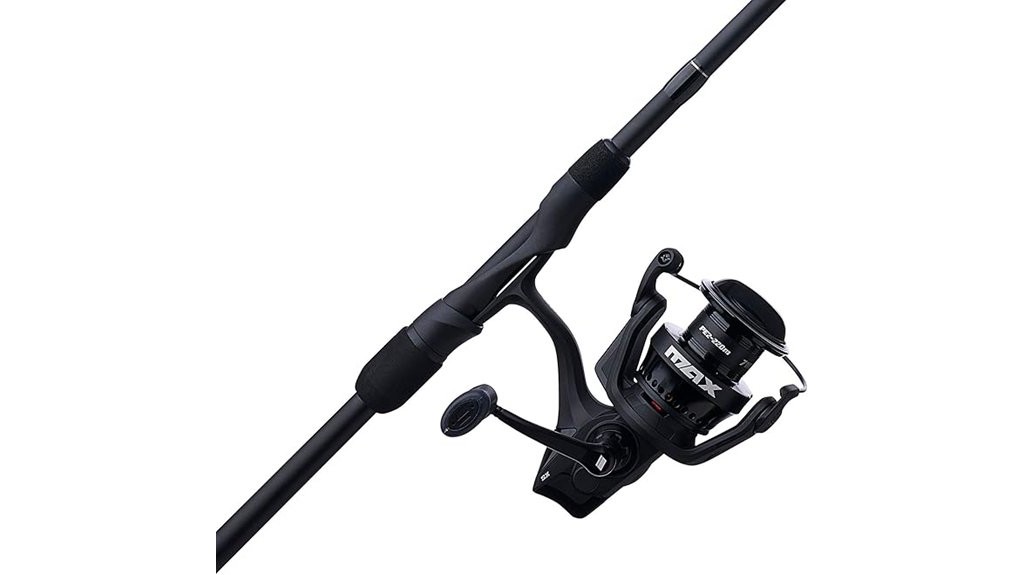

The Abu Garcia Max SX is a spinning rod and reel combo designed to give you a matched setup without choosing the two components separately. The configuration linked here combines a 4000-size Max SX spinning reel with a 7-foot, medium-heavy, fast-action, 2-piece rod.

The reel uses an A-Symmetric graphite frame and rotor, V-Rotor and V-Spool designs, and Abu Garcia’s Rocket Line Management system. The rod uses a 24-ton graphite blank, high-density EVA grip, an Abu Garcia reel seat, and eight PVD-coated one-piece stainless steel guides.

This version makes the most sense when you want more line capacity and rod backbone than a light or medium spinning combo provides. It is not the Max SX variant to choose if your normal fishing centers on very light line, tiny lures, or ultralight presentations.

Who Should Buy It?

Design and Build Quality

The Max SX keeps weight under control by using graphite in both the reel platform and the 24-ton rod blank. The reel’s A-Symmetric graphite frame and rotor are designed to create a compact platform, while the V-Rotor and V-Spool reduce unnecessary bulk in the rotating components.

On the rod, eight PVD-coated one-piece stainless steel guides handle line routing. High-density EVA at the split grip gives you a firm contact point, and the reel seat keeps your hand close to the blank. These details matter when you are casting repeatedly because the rod needs to feel responsive without becoming awkward in hand.

The two-piece construction is also practical. A 7-foot one-piece rod can be inconvenient in smaller vehicles or storage areas, while this version separates into two sections. The tradeoff is that you need to make sure the ferrule connection is fully seated and aligned before fishing.

Reel Performance and Drag

The 4000 reel uses a 5.2:1 gear ratio and retrieves about 31 inches of line with each handle turn. That gives you a useful middle ground between controlled presentations and retrieving slack without excessive handle movement.

The oil-felt front drag is rated to a maximum of 14 lb. Maximum drag should not be treated as the setting you always use. Your actual drag setting should match the line, leader, hook, and fishing situation rather than simply being tightened to its limit.

Inside the reel, six stainless steel ball bearings plus one roller bearing support operation. The machined aluminum spool is braid-ready, which means braid can be secured directly to the spool without the slipping problem that can occur on a smooth spool surface.

Line Management and Capacity

Line control is one of the Max SX reel’s more useful design areas. Abu Garcia combines its Rocket Line Management system with the Rocket Spool Lip Design to manage how line leaves and returns to the spool.

For the linked 4000 configuration, listed monofilament capacity is 210 yards of 10 lb line, 180 yards of 12 lb line, or 150 yards of 14 lb line. Listed braid capacity is 210 yards of 14 lb braid. The rod itself carries an 8-17 lb line rating.

Those capacities give you room for general freshwater techniques where a larger spinning reel is useful, but they also underline why this is not an ultralight setup. If you mostly use 2-6 lb line and very small lures, a smaller reel and lighter rod will normally be a better match.

Rod Power, Action, and Sensitivity

The 7-foot rod combines medium-heavy power with a fast action. Medium-heavy power gives you more resistance under load than the light and medium Max SX variants, while the fast action concentrates more flex toward the upper part of the blank.

The 24-ton graphite blank is designed to keep the rod relatively light and responsive. Its listed lure range of 3/8 to 3/4 oz makes this configuration better aligned with moderate and heavier freshwater presentations than tiny ultralight lures.

High-density EVA grips provide a durable hand surface, while the split-grip layout reduces material around the lower handle. The result is a setup intended to give you useful feedback from the rod without requiring a premium-priced blank.

How It Performs in Real Use

For General Freshwater Fishing

The medium-heavy rod and 4000 reel give you a versatile combination when your fishing calls for more power than a light spinning setup. The 14 lb drag ceiling and 8-17 lb rod line rating leave room to choose line based on cover, lure type, and target fish rather than being limited to ultralight tackle.

For Repeated Casting

The graphite reel frame, graphite rod blank, EVA grip, and 6+1 bearing system are useful when you spend long periods casting and retrieving. The 31-inch line recovery also helps you pick up slack efficiently after a cast.

For Transport and Storage

The two-piece rod is easier to fit into many vehicle trunks, storage closets, and travel setups than a full-length 7-foot one-piece rod. Keep both sections protected during transport, and avoid allowing the guide frames or rod tip to carry the weight of other gear.

For Heavier Presentations

The 3/8-3/4 oz lure rating and medium-heavy power make this configuration more suitable for moderate-weight presentations than the lighter Max SX versions. If your tackle normally falls well below that lure range, the rod may feel stiffer than you want.

Setup Tips Before First Use

Join the two rod sections firmly without forcing them, then sight down the blank to make sure all eight guides are aligned. Attach the reel securely in the reel seat and confirm that the handle is installed on the side you prefer.

When spooling line, stay within a suitable line range for the rod and avoid overfilling the spool. An overfilled spinning reel can create loose coils and casting problems even when the reel includes line-management features.

Set the drag for the line and technique you are actually using instead of automatically tightening it to the reel’s 14 lb maximum. Recheck your drag after changing line, leaders, or presentations.

Freshwater Use and Care

The verified 4000 combo is listed as a freshwater spinning setup. The original review described saltwater compatibility and corrosion resistance, but those claims are not supported strongly enough for this exact configuration, so you should not treat it as a dedicated saltwater combo based on this review.

After fishing, check the guides, handle, spool, rod connection, and line for damage or debris before storing the combo. Keep the rod sections protected from impacts, and follow Abu Garcia’s current care and service instructions if the reel develops a mechanical problem.

Pros and Cons

Check Current Price →

Is It Worth the Price?

The Max SX sits in a practical part of the spinning-combo market for anglers who want more than an entry-level setup without moving directly into separate premium rod and reel purchases. Its value comes from the combination of a graphite platform, braid-ready aluminum spool, 6+1 bearings, line-management features, medium-heavy graphite rod, and 14 lb drag system.

You get the most value from this configuration when those specifications match how you actually fish. Someone who needs a 4000 reel, two-piece rod, and medium-heavy power can use most of what the combo offers instead of paying for features that do not fit the application.

It is less compelling if you want a lightweight finesse outfit. A smaller reel and lighter rod would be easier to handle with light line and small presentations, even if the larger Max SX offers more capacity and power on paper.

How It Compares to Alternatives

The Pflueger President Spinning Combo is worth comparing if you place a high priority on bearing count and want several lighter rod-and-reel configurations. The Daiwa Revros LT Combo is another current freshwater alternative if you prefer Daiwa’s LT reel platform.

The linked Max SX makes the strongest case when you specifically want its 4000 reel, 14 lb maximum drag, medium-heavy 7-foot rod, two-piece construction, and Abu Garcia line-management features. Your choice should come down to the exact rod power and reel size you need rather than brand name alone.

What to Expect From the User Experience

The Max SX’s controls are conventional for a spinning setup, so you do not need a specialized casting-reel learning process. You get reversible right/left retrieve, a front drag adjustment, a braid-ready spool, and a reel matched to the supplied rod.

The larger 4000 reel is the main consideration. It gives you more capacity and pairs logically with the medium-heavy rod, but anglers accustomed to small spinning reels may notice the extra size immediately. That is a fit issue rather than an automatic flaw, which is why selecting the correct Max SX variant matters.

Frequently Asked Questions

The Bottom Line

The Abu Garcia Max SX 4000 spinning combo is a strong fit if you want a 7-foot medium-heavy graphite rod, 14 lb drag, substantial line capacity, and a two-piece design that is easier to transport. Skip this particular configuration if your priority is ultralight finesse fishing or a dedicated saltwater setup.

Its best qualities are the practical reel capacity, graphite construction, line-management features, and well-matched medium-heavy rod. The main limitation is simply that the larger 4000 platform is not the right tool for every spinning application, which makes choosing the correct Max SX size more important than chasing specifications alone.
